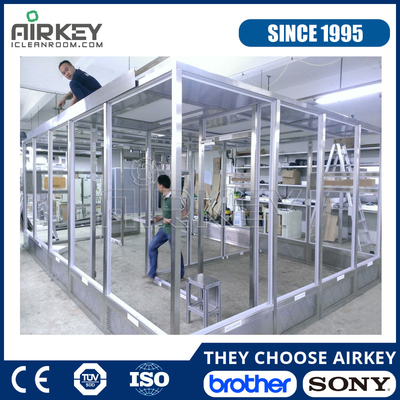

High Standard ISO 5 Clean Lab Specification Modular Clean Room
I. MODULAR CLEANROOMS: GOOD ENOUGH OR BETTER?
High Standard ISO 5 Clean Lab Specification Modular Clean Room is a kind of air purifying equipment providing partial high clean environment. It is the easiest and fatest way to build a simple clean room. Equipped with a lot of clean level and space collection, it can be designed as request. Compared to clean room engineering, it boasts shorter construction time and is flexible and movable. In addition, High Standard ISO 5 Clean Lab Specification Modular Clean Room is easy for installation and simple for operation. It also can be installed in part of clean room of general level which requires high cleanliness to save cost.
· Lower investment and installation costs by not over-designing the whole cleanroom to meet the highest level of cleanliness required
· Customized design is welcomed.
· It can be used singly or combined.
· Bi-swing interlocking door with self-closing hinges to avoid cross contamination and maintain room pressure
· HEPA Fan Filter Units (FFUs) ensure dust free environment and cleancliness as required.
· Modular construction, easy to increase clean level, good expansion and reusable, convenient movement
II. TYPE OF CLEAN ROOM
1. Softwall Clean Room
'Softwall Clean Rooms' have the most economical type of modular cleanroom wall construction. Clear, flexible and transparent PVC panels are mounted onto a robust, stainless steel frame, protecting and enclosing the clean area from dusts outside. PVC panels overlap to ensure the walls of the softwall clean room are effective barriers which won't breach, when in position. PVC panels also can avoid particles to enter the room. The positive airflow pushes air down through the cleanroom, allowing particles to be flushed out through the outlet at the bottom of the room.
2. Hardwall Clean Room
Airkey provides an economical, versatile solution to clean manufacturing requirements in semiconductor, medical device, and many other industries. Unlike other hardwall modular cleanrooms on the market which require complex suspended ceiling supports, Airkey’s Hardwall cleanrooms are completely free-standing structures. Hardwall Cleanrooms are uniquely fabricated with a square tubing, powder coated frame or 304 stainless steel and aluminum extrusions integrated for superior strength and simplifying the installation of interlocking panels. Acrylic Panels offer full visibility and outstanding tensile strength. These economical panels are lightweight and easy to clean.
III. FIELD OF APPLICATION
Bio-pharmaceuticals, medical treatment, food, LCM, camera module, touch screen, optical module, FILM, and other production or experimental environment;
IV. STRUCTURE
CONFIGURATION
| Control Panel | Self-developed integrated control panel installed to adjust relevant parameters and also control the modular clean room |
| Ceiling Cover | Protect ceiling light modules and fan/filter units from cleanroom wash-downs with durable polypropylene covers. |
Acrylic Wall | Offer full visibility and outstanding tensile strength. These economical panels are lightweight and easy to clean. |
Pass Box | An optional device for transferring objects in or out of clean room so as to avoid cross contamination. Pass boxes have electronic interlocking functions to maxmize the efforts to maintain cleanliness |
| FFU | The core of modular clean room which filter the fresh air into clean air into the clean room so as to maintain clean area from ISO 5 to ISO 9 |
| Pressure Damper | Improve safety and lessens repairs costs by withstanding wind gusts and also maintaining stable pressure |
V. SPECIFICATIONS
