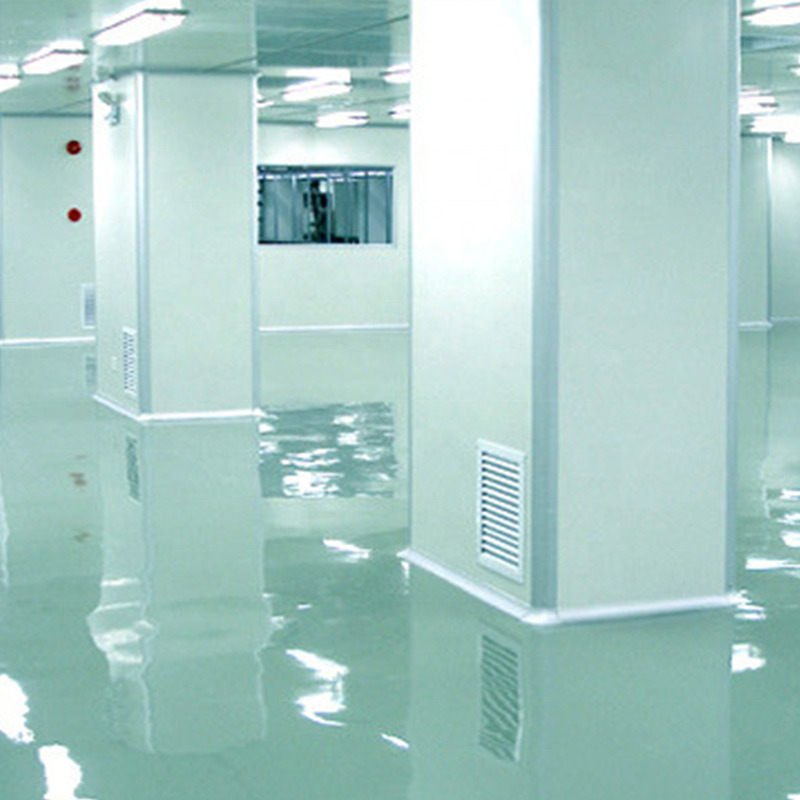

Fire Resistant Clean Room Pharmaceutical Purification Engineering Clean Room Modular

100 Square Meters
MOQ
$11.00(100 - 199 Square Meters) $10.00(200 - 499 Square Meters) $9.00(>=500 Square Meters)
가격
Fire Resistant Clean Room Pharmaceutical Purification Engineering Clean Room Modular
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 Year
After-sale Service: Online technical support
Project Solution Capability: Others
Application: Workshop, pharmacy, cosmetic, gmp, electronic, food etc factory
Design Style: Industrial
Model Number: YCCR-03
Panel Material: Metal
Product name: clean room sandwich panel
project service: design, manufacturing, construction
Material: double steel+filler
Size: 1150mm width, height customized
Cleanliness: class 100-100000
Feature: fire proofing, thermal insulated, big bearing capacity
Color: Light gray
Service: free training, overseas installation, supply drawing
production time: 7-10 days
기본 정보
Model Number: YCCR-03
결제 및 배송 조건
Packaging Details: carton/plywood case
제품 설명
Product Description

New Design Pharmaceutical GMP Standard Clean Room

GMP requires a cleanroom or clean area for pharmaceutical manufacturing. Within the GMP there are further standards for the materials used in the construction of a cleanroom or area compliant with GMP. All materials must be able to withstand frequent cleaning and disinfection. Additionally, materials must be free of cracks, smooth and level, and able to interlock seamlessly.Particulate materials may not be used due to the risk of contamination. Aside from GMP compliance, other factors such as durability, ease of installation, and cost come into consideration when designing a cleanroom. At YICHANG PURIFICATION TECHNOLOGY
LIMITED we will guide you through the design process step by step to ensure that both GMP standards, your needs, and your budget are all satisfied.
-Panel come with steel frame four sides to avoid contamination
-Resistant to chemical, attack abrasion and scratches Clean Room Fabrication (Architecture), including: clean room partition wall system; clean room suspended ceiling system.
-High quality insulation core materials
-Pre-embedded reinforcement for the opening of light fixture and air filters.
-Pre-embedded conduit for wiring.
-Advanced design makes all connection smooth, flush and cleanable
-Easy and fast installation system
-Finishing Surface can be flush connection as required.
-Strong walkable ceiling/ false ceiling
Machine –made economical sandwich panelModular wall and ceiling sandwich panel for china modular clean room turnkey for pharmaceutical factory
-Hand-made modular sandwich panel
-Skin:
- Pre-painted galvanized steel (PPGI) skin
-304S.S skin
-HPL(Melamine high pressure laminate) skin
-Core insulation material:
-EPS(Expanded polystyrene)
-PUF (Polyurethane foam)
-Rock wool (mineral wool)
-Paper or aluminum honeycomb
-With magnesium gypsum board
sandwich panel
double side steel +silicon rock filler
double side steel +rock wool filler
double sidec steel+EPS filler
double side steel+magnesium oxide
board
fire proofing grade
A
A
B
A
Function
Wall and Ceiling panel
Size
1150mm width, height customized
Thickness
12mm, 50mm, 75mm, 100mm
Installation
1. we send engineer to customer side
2. constract out to construction team
3. customer send technicistto our company for free studying
Panel install drawing as below:
Clean room doors for modular clean room turnkey for pharmaceutical factory
-Alu frame panel doors
-Flush type steel skin doors
-HPL skin doors
-Stainless steel doors
-Auto sliding door
-Emergency door
Clean room windows for modular clean room turnkey for pharmaceutical factory
-Flush type double glass window
-Alu frame double glass window
-Single glass window
Alu profile coving, corner, hangling and connection system
HVAC System for modular clean room turnkey for pharmaceutical factory
•HVAC design and room data: according to ISO14644-1 and CFR209E cleanliness class
Chiller system:
- Air cooling chiller
-Water cooling chiller
Air handling unit (AHU)
•Humidifier or dehumidifier
•Air supply ducts
•HEPA filter box
•Air return and air exhaust ducts
•Diffuser, grills , valves, damper and louver, fan etc
Flooring system for Modular Portable Clean Room 100 class clean room house Prefabricated
Cleanroom lighting
Clean RoomAccessory Equipment:
-Clean room telephone
-Static pass through box
-Dynamic pass through box
Air Shower
Person air shower
Fast Rolling Up door Cargo Air Shower
Sliding Door cargo air shower
Laminar air flow/FFU
Project image
